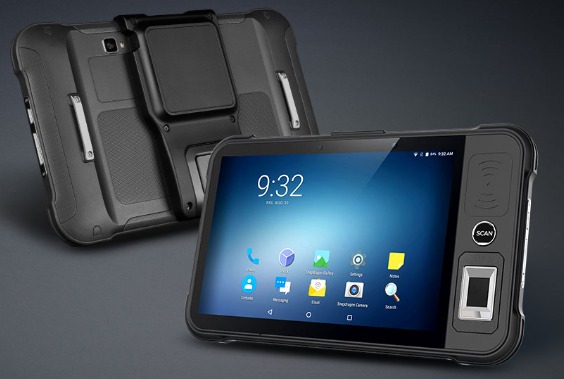

The Chainway P80 RFID Tablet is a high-performance industrial-grade device that combines robust computing power, advanced RFID capabilities, and superior portability. Equipped with Chainway’s self-developed UHF RFID module based on Impinj E Series chips and supporting Impinj Gen2X, the P80 delivers outstanding tag reading and writing performance for professional data collection applications.
Powered by Android 13.0 OS with GMS & AER certification, and driven by an octa-core 2.0GHz processor, the P80 ensures smooth, efficient operation. Its 8-inch IPS Full HD display provides crystal-clear visuals, while the 8700mAh high-capacity battery guarantees uninterrupted use throughout long shifts.
Built to withstand tough environments, the device features IP65 sealing and survives multiple 1.5m drops. Whether in retail, inventory management, logistics, asset tracking, or field services, the P80 offers the perfect balance of performance, durability, and versatility.
Android 13 OS with GMS & AER certification, supporting 90-day security updates and FOTA.
High-performance Octa-Core 2.0GHz CPU for seamless multitasking.
8-inch IPS LTPS display (1920×1200) with Corning Gorilla Glass for high durability.
8700mAh removable battery ensuring long operation time (10+ hours continuous use).
IP65-rated sealing and 1.5m drop resistance for harsh industrial conditions.
Self-developed RFID module based on Impinj E Series chips with Gen2X support.
Optional barcode scanning, NFC, fingerprint, and PSAM card slots.
Advanced communication options: 4G LTE, dual-band Wi-Fi, Bluetooth 5.1, GPS, GLONASS, BeiDou, and Galileo.
| Component | Specification |
|---|---|
| Processor | Octa-core 2.0GHz |
| Operating System | Android 13 (GMS & AER certified) |
| Memory | 4GB RAM + 64GB ROM |
| Expansion | Supports MicroSD up to 256GB |
| Display | 8" IPS LTPS (1920×1200) |
| Touch Panel | Corning Gorilla Glass, multi-touch, supports gloves/wet hands |
| Battery | 8700mAh rechargeable Li-ion (10+ hrs use, 500+ hrs standby) |
| Parameter | Details |
|---|---|
| Chipset | Chainway self-developed module based on Impinj E Series |
| Frequency Range | 865–868 MHz / 920–925 MHz / 902–928 MHz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Circular polarization |
| Output Power | 1W adjustable (optional 2W version) |
| Read Rate | Up to 900+ tags per second |
| Max Read Range | Up to 10 meters (open outdoor conditions with Impinj MR6 tag) |
Engines: Zebra SE4710 / Honeywell HS7
Supports 1D/2D barcodes including QR, PDF417, DataMatrix, and more.
Multiple fingerprint sensor options available:
Capacitive (TCS1) – Compact and reliable.
Optical (Morpho CBM-E3) – FBI & FIPS certified, advanced fake finger detection.
Supports encryption (AES/DES), WSQ, and ISO 19794 standards.
WWAN: 2G/3G/4G LTE global bands
WLAN: Dual-band 2.4G/5G Wi-Fi (802.11 a/b/g/n/ac)
Bluetooth: 5.1
GNSS: GPS, AGPS, GLONASS, BeiDou, Galileo
Ports: USB Type-C (OTG), Micro SIM/TF/PSAM slots
| Test | Rating |
|---|---|
| Drop Resistance | Multiple 1.5m drops to concrete |
| Tumble Test | 500 × 0.5m falls |
| Sealing | IP65 per IEC standards |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5%–95% non-condensing |
| Feature | Specification |
|---|---|
| Rear Camera | 13MP Autofocus with Flash |
| Front Camera | 5MP |
| NFC Frequency | 13.56 MHz |
| Protocols Supported | ISO14443A/B, ISO15693, NFC-IP1/2 |
| Range | Up to 4 cm |
Retail & Inventory Management
Warehouse & Logistics Tracking
Asset & Equipment Management
Field Service & Maintenance
Healthcare & Access Control
The Chainway P80 RFID Tablet offers an unmatched combination of intelligent data capture, rugged durability, and superior RFID performance — making it the perfect all-in-one mobile solution for modern enterprises.
