More Ports, Superior Performance — Built for Complex and Demanding RFID Applications

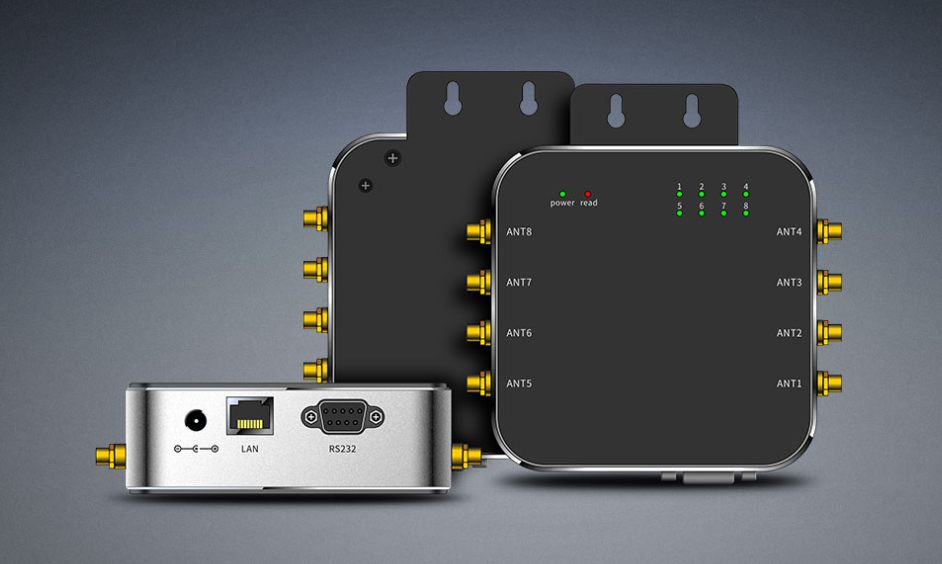

The Chainway UR8 Fixed UHF RFID Reader is a high-performance 8-port RFID reader designed to deliver unmatched efficiency, speed, and reliability in large-scale or complex RFID deployments. Powered by the Impinj E Series chips and supporting Impinj Gen2X, the UR8 offers exceptional reading accuracy, stable connectivity, and superior anti-interference performance. Its aluminum alloy body ensures durability and effective heat dissipation, allowing it to perform optimally in diverse environments, both indoors and outdoors.
With its eight-channel antenna design, the UR8 enables simultaneous reading of multiple RFID tags across different zones, making it ideal for large warehouses, logistics centers, retail inventory management, apparel tracking, jewelry management, library and archive systems, banking operations, and industrial production lines. It supports RS232 and RJ45 interfaces, ensuring flexible deployment and seamless data communication across various system configurations.
The UR8 combines high-speed tag processing with excellent electromagnetic immunity, achieving a read rate of 550+ tags per second. Its optional 2W high-output power enhances read range and performance, enabling it to handle dense tag environments with ease.
8-Port Design for Flexible Deployment: Connects multiple antennas to cover large areas or complex layouts.
Advanced Impinj E Series Chipset: Ensures high-speed data capture, precision, and compatibility with Impinj Gen2X.
Exceptional Read Rate: Capable of reading 550+ tags per second, ideal for high-volume RFID operations.
Wide Frequency Range: Supports 865–868 MHz, 902–928 MHz, and 920–925 MHz, adaptable to global RFID standards.
Adjustable Output Power: 1W standard (30dBm) or optional 2W (33dBm) output for extended read range.
Durable and Efficient: Made from aluminum alloy with air-cooling design for excellent heat management.
Strong Anti-Interference: Resistant to electromagnetic noise, ensuring stable, accurate reads.
Versatile Interface Support: Includes RS-232 and RJ45 Ethernet for reliable data communication.
Developer Friendly: Comes with SDK support for Windows, Linux, and Android systems.
Rugged for Any Environment: Operates between -25°C to 65°C and tolerates high humidity conditions (up to 95%).
Physical Characteristics
Dimensions: 102.8 mm (L) × 102.8 mm (W) × 34.2 mm (H)
Weight: 450 g (without antenna)
Material: Aluminum Alloy
Input Voltage: DC 9V–12V
Standby Current: <30mA
Working Current: 800mA ±5% @ DC 12V
Communication Interface: RS-232 / RJ45
Cooling: Air Cooling
Ethernet Interface: 10/100 Base-T Ethernet (RJ45)
RFID Performance
Chipset: Impinj E Series
Protocol: EPC Global UHF Class 1 Gen 2 / ISO 18000-6C
Frequency: 865–868 MHz / 920–925 MHz / 902–928 MHz
Max Read Rate: 550+ tags/sec
Output Power: 1W (30dBm adjustable) / Optional 2W (33dBm adjustable)
Sensitivity: < -78 dBm
RSSI: Supported
Ambient Temperature Monitoring: Supported
Antenna Ports: 8 × 50Ω SMA ports
Antenna Compatibility: Supports 6dBic, 9dBic, and other types
Environmental Conditions
Operating Temperature: -25°C to 65°C (-13°F to 149°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Humidity: 5% to 95% (non-condensing)
Warehousing & Logistics – Real-time inventory visibility and asset tracking.
Retail & Apparel Management – Automated product identification and stock management.
Jewelry & Asset Tracking – Secure item identification and authentication.
Libraries & Archives – Efficient cataloging and retrieval of tagged materials.
Banking & Medical Equipment Cabinets – Intelligent access control and record keeping.
Production Lines & Manufacturing – Automated process monitoring and workflow tracking.
Laundry & Textile Management – Streamlined tracking of garments and uniforms.
